QUICKPOWER 930 - Caeb International
Our products > Agriculture > Collecting vineyard prunings and trimmings

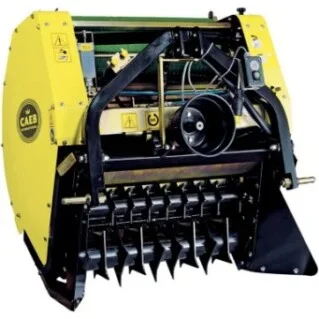

ROUND BALER FOR CUT VINE BRANCHES DESIGNED FOR ROWS BETWEEN 120 AND 160 CM IN WIDTH
Optional equipments:
Should any material get stuck among the pick-up rollers, it is possible to engage the hydraulic pick-up mechanism to “power out” the blockage.
2) Forks
The collecting forks, necessary when working on stony ground, prevent the transferring of rocks and stones inside the machine baling chamber.
QUICKPOWER wraps the bales with a special extruded PP (polypropylene) net, specifically designed to keep compact the any type of cut vine branches and trimmings. Alternatively the bales can be wrapped with SISAL natural twine.
The bale produced has the following dimensions: height 600 mm - diameter 400 mm.
5) Bale Transporter 4CM can carry four bales.
POWER UNIT REQUIRED FEATURES
- double-acting hydraulic system
- 12 Volt electring system
- power at PTO ~ 15 kW and rotating speed ~ 350 rpm
N.B. The machine without accessories weighs more than 500 Kg, hence the power unit shall have a suitable weight.
 | |||
Technical data | |||
QUICKPOWER 930 | |||
Height | 1,000 mm | ||
Width | 915 mm | ||
Length | 1,165 mm | ||
Weight | 505 kg | ||
QUICKPOWER 930 + BALE TRANSPORTER 8CM | |||
Height with Bale Transporter 8CM (Quickpower included) | 1,900 mm | ||
Length with Bale Transporter 8CM (Quickpower included) | 2,550 mm | ||
QUICKPOWER 930 + BALE TRANSPORTER 4CM | |||
Height with Bale Transporter 4CM (Quickpower included) | 1,700 mm | ||
Length with Bale Transporter 4CM (Quickpower included) | 2,000 mm | ||
Accessories weight | |||
Bale Transporter 8CM | 235 Kg | ||
Bale Transporter 4CM | 195 Kg | ||
Complete pick-up forks | 16 Kg | ||
Bale features | |||
Bale size | 600 mm (H) x 400 mm Ø | ||
Bale weight | 25 - 30 Kg | ||
